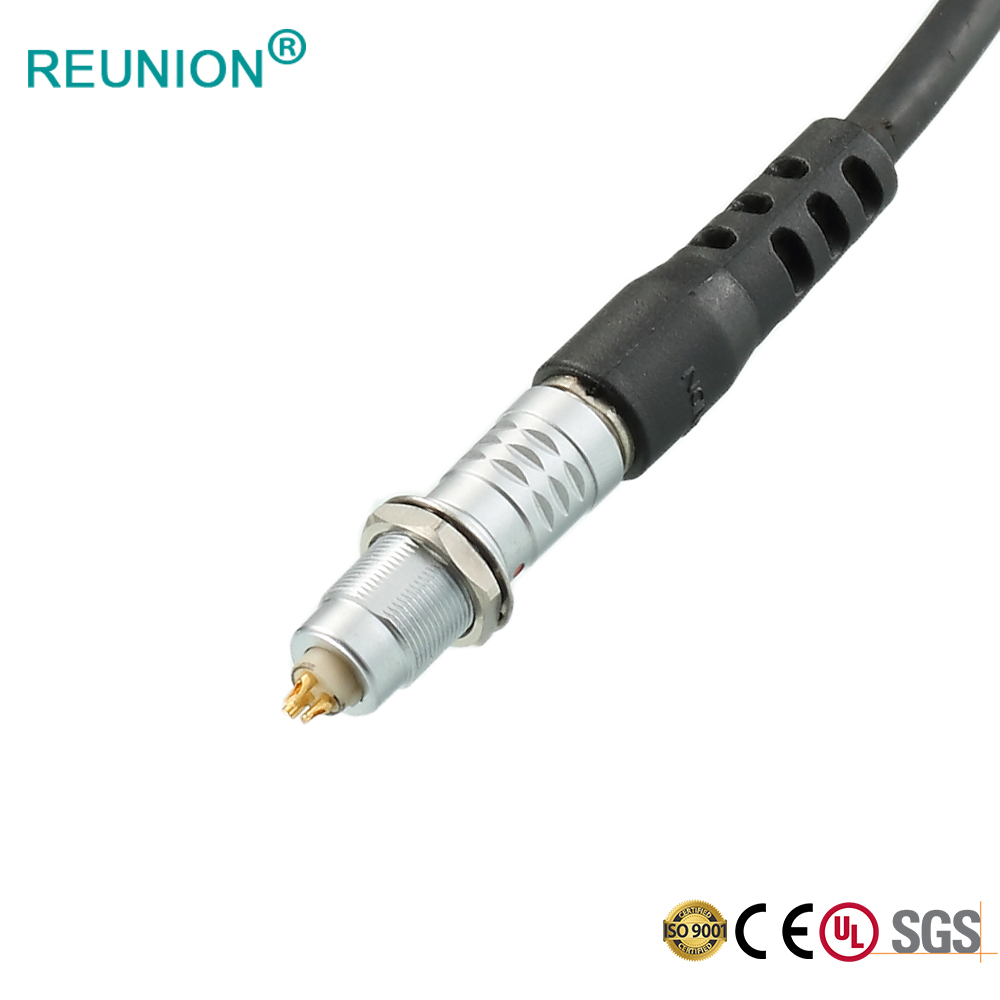

Circular Push-Pull Connectors Panel Mount Assembly Cale Metal Data Bus Connectors

Quick push pull self-latching system
Solder , crimp or print contacts
Straight or elbow 90。
Multiple keying options to avoide mismating
Full EMC shielding
Multi-pole 2 ~ 32 contacts
High-density installation to save space
Mating cycles: >5000 times
Humidity: at 60 °C, max. up to 95%
Temperature range: -45 ° ~ + 125 °
Vibration: 10-20,000HZ, 15g
Mechanical shock: 100g.6ms
Salt fog corrosion:> 48h
Protection class: IP50
Product Certificate: CE/UL

Color:
Product:
Material:
Quantity:
  • PGG.00B304.CPAC.27L
  • REUNION
  • 3917400000

Circular Push-Pull Connectors Panel Mount Assembly Cale Metal Data Bus Connectors

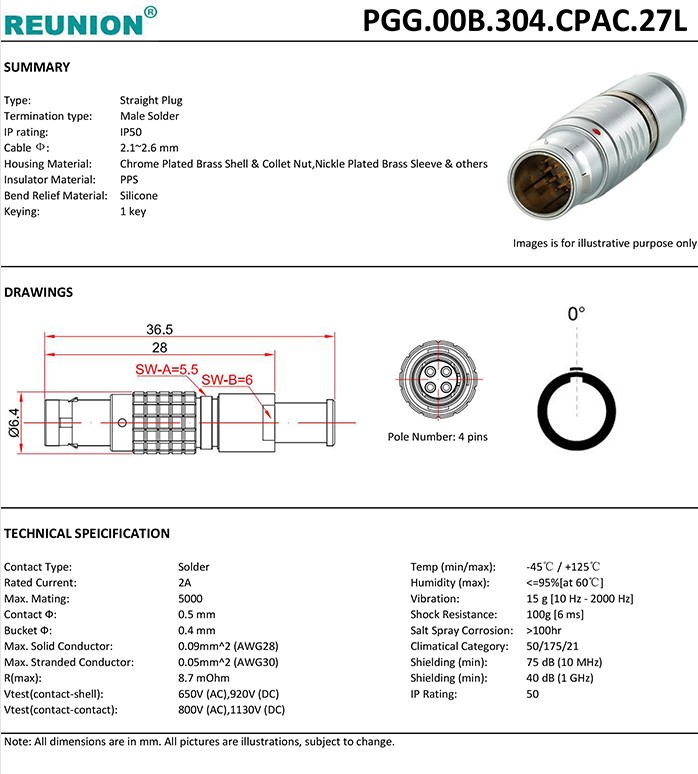

Product Specification:


2

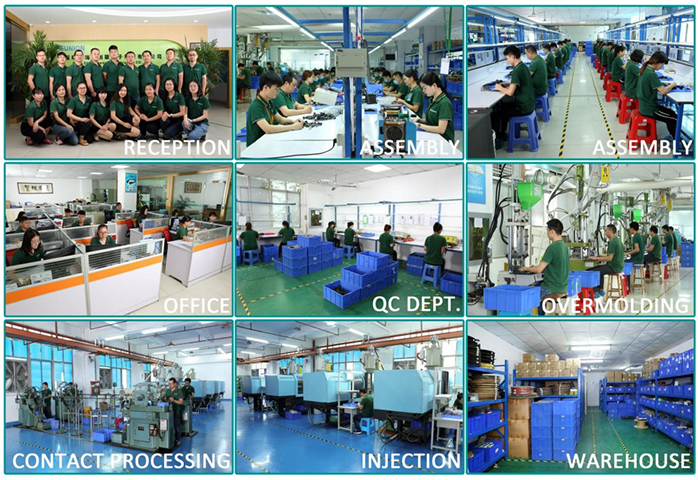

Our company:


1


Exhibition:


11



Certificate:





Application:

medical cable connector

Circular Push-Pull Connectors Panel Mount Assembly Cale Metal Data Bus Connectors
