M12 12pole male and female Circular IP68 Waterproof mounting Fields Quick-lock connector

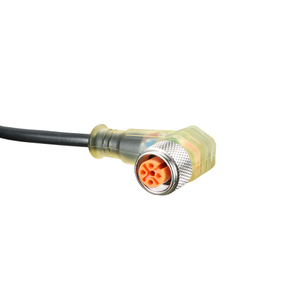

M12 cable connectors--Straight connector or 90 degree angle connector.
* Standard cable section: 3 wires or 4 wires (3/4/5 pin outside diameter: 3.8mm; Core: 9 * 0.2mm)
* Standard cable length: PVC cable=2M
* Cable length is at buyer's option
* IP67, Water and oil resistant

Quantity:
  • M12
  • REUNION
  • 3917400000

M12 12pole male and female Circular IP68 Waterproof mounting Fields Quick-lock connector



Product Specification


Voltage Rating 60V AV/DC
Accepted Max. Cable OD 13 mm
Back Shell Thermoplast PA66, Fire resistance V-0
Pin range 2, 3, 4, 5, 6 ,16, 20, 24, 3+8, 3+9
Insulation Material Thermoplast PPS, Temperature range 260 degree
Contact Material Brass
Contact Plating Gold over nickel
Contact Termination Style Solder/screw
Mating Cycle >500 Frequency
Temperature Range -40 to +100degree
Humidity

-10°C~70°C(PVC cable)

-25°C~90°C(PUR cable)

-25°C~105°C(PUR cable)

Vibration 10-500HZ Acceleration 200m/s
Shock 40-80 Frequency /min Acceleration 250m/s

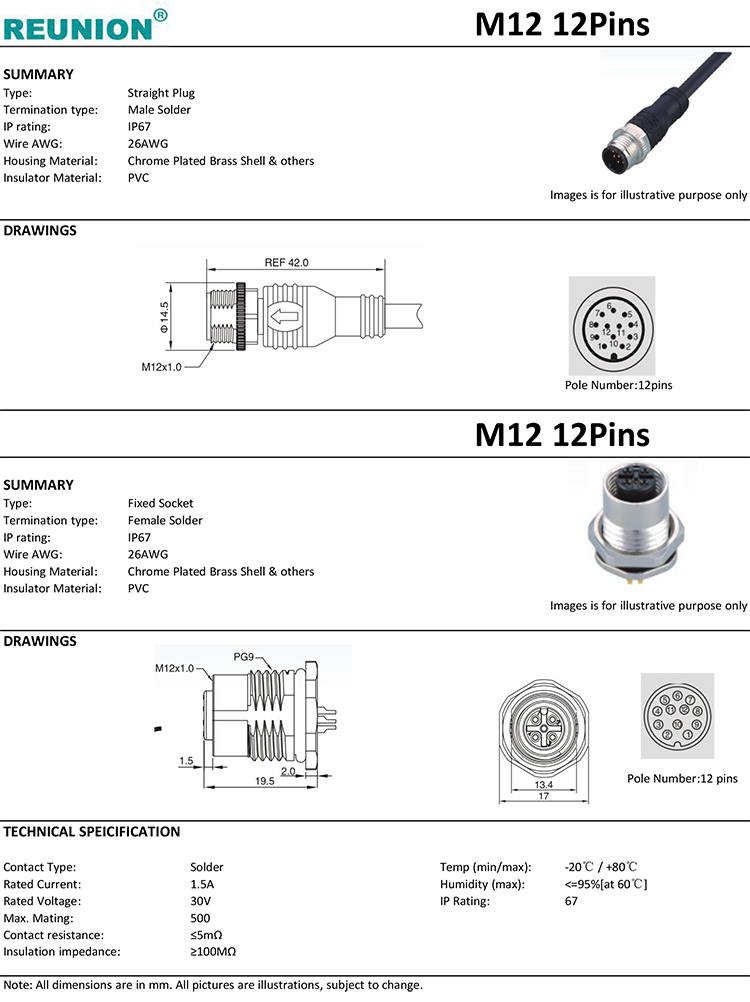

M12 12Pins


Poduct Application:


Sensor connector
