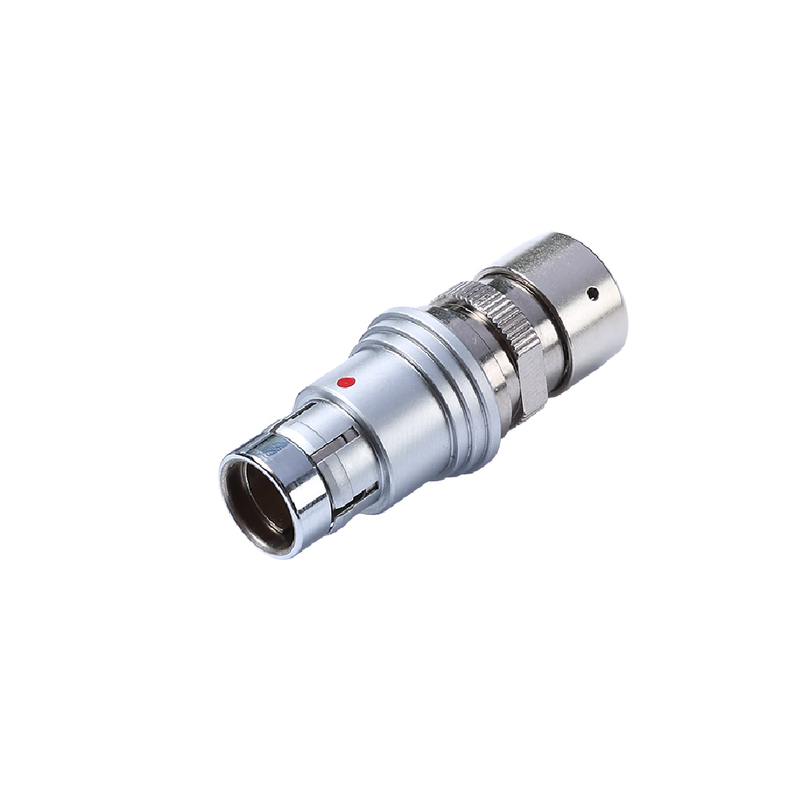

Male female Half-Shell IP68 Waterproof Connector

Push pull self-latching system
Suitable for extremely harsh environment
Solder or print contacts
Multi-pole 2 ~ 32 contacts
Compact and lightweight
High-density installation to save space
Internal semi-circle keying to avoide mismating
Full EMC shielding
Temp. range -50°C to 200°C
High vibration resistance
High shock resistance
Protection class(mated): IP67
Availability:
Quantity:
  • PLG.0F310.CPAC.52
  • REUNION
  • 3917400000

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



Male female Half-Shell IP68 Waterproof Connector

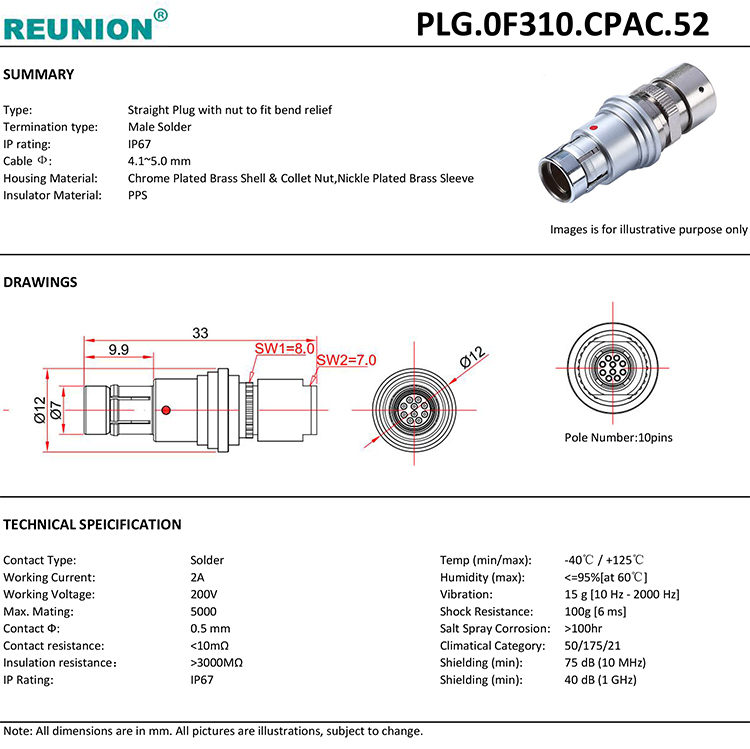

Product Specification:


PLG.0F310.CPAC.52


0F SERIES PUSH-PULL CONNECTORS:


PGG.0F STRAIGHT PLUG,IP67:

watertight connector


PLG.0F STRAIGHT PLUG, SHORT TYPE,IP67:

medical connector


SLG.0F FIXED SOCKET, PCB,IP67:

IP68


0F COAXIAL 1+3 PLUG:

coaxial


0F COAXIAL 1+3 SOCKET:

coaxial cable


Poduct Application:

METAL Connector
