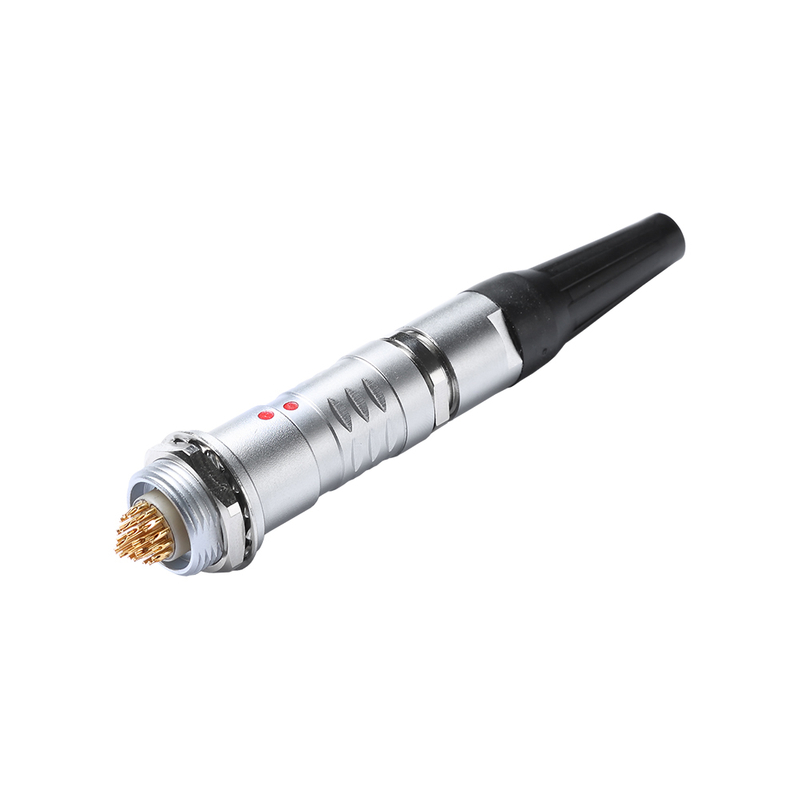

Metal FGG/EGG Push-pull Circular Connector

1.Quick push pull self-latching system
2.Solder , crimp or print contacts
3.Straight or elbow 90。
4.Multiple keying options to avoide mismating
5.Full EMC shielding
6.Multi-pole 2 ~ 32 contacts
7.High-density installation to save space
8.Mating cycles: >5000 times
9.Humidity: at 60 °C, max. up to 95%
10.Temperature range: -45 ° ~ + 125 °
11.Vibration: 10-20,000HZ, 15g
12.Mechanical shock: 100g.6ms
13.Salt fog corrosion:>48h
14.Protection class: IP50
15.Product Certificate:UL
Availability:
Quantity:

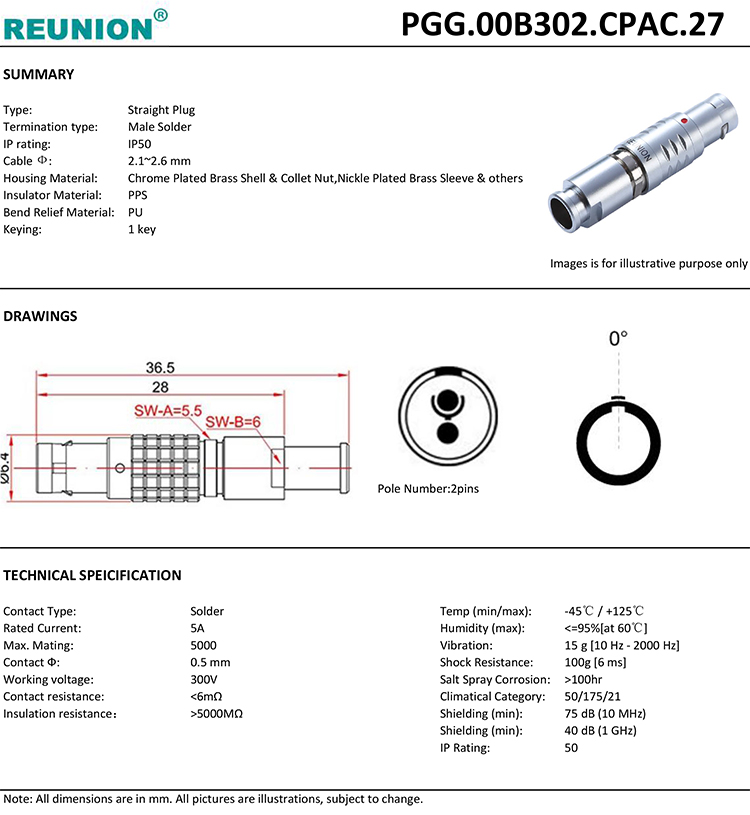

  • PGG.00B302.CPAC.27
  • REUNION

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



Metal FGG/EGG Push-pull Circular Connector


Product Specification:


2pins metal connector


Advantage:

push-pull connector


Poduct Application:


metal coupler


Our Company:

medical connectors


Exhibition:

GPS metal connector


Certificate:

Test connector


Hot sales:
