REUNION 3N Series - 3Pin Waterproof Power Connectors

1: Waterproof (IP67) and Waterproof (IP50)
2: The power input and power output with a different lock to avoid short circuit
Quick and easy twist lock.
3:Material for the nylon fiber, fire rating V-0, corrosion resistance, good weather resistance and excellent electrical properties

4:High temperature environment still has good electrical insulation,
5:Socket terminals using imported beryllium copper, with high life expectancy and conductivity.

Quantity:
  • PCE.3N303.NE12LY.67
  • REUNION

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS


3N series power Connector's Parameter:

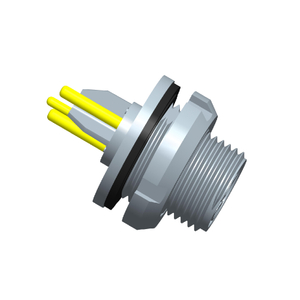

Name: 3N female socket connector
Model NO: PCE.3N303.NE12LY.67
Color:  Yellow/black
Material: Nylon and fibre
Coupling:  Threaded coupling
Cable diameter: 10mm
Termination: Solder
Pin number: 3 pins



Technical parameters:




Contact diameter: 2.2mm
Contact resistance: <2.0
Working voltage: 250v
Working amper: 30A
Working temperature: -30 to 105
Mechanical life:   >2000
Suitable cable diameter: 8-12.5
Protection class:  IP67/IP50
Product Certificat: CE/UL


Product Specification:


POWER CONNECTORS-WATERPROOF


3N SERIES POWER CONNECTOR:



3N IP50-BLUE COLOR:


power supply connector



3N IP50-GREY COLOR:


Powercon connector



3N IP67-BLACK COLOR:


waterproof connector



3N IP67-YELLOW COLOR:


electrical connector



Poduct Application:


LED connectors


Our Company:

IP67 connector


Exhibition:

LED screen connector


Certificate:

reunion connectors
