Full Shielding Safe And Stability Male Female Connector Socket Connector

Quick push pull self-latching system
Solder , crimp or print contacts
Straight or elbow 90。
Multiple keying options to avoide mismating
Full EMC shielding
Multi-pole 2 ~ 32 contacts
High-density installation to save space
Mating cycles: >5000 times
Humidity: at 60 °C, max. up to 95%
Temperature range: -45 ° ~ + 125 °
Vibration: 10-20,000HZ, 15g
Mechanical shock: 100g.6ms
Salt fog corrosion:>48h
Protection class: IP50
Color:
Material:
Certificate:
Gender::
Type:
Availability:
Quantity:
  • SCG.00B304.CPN
  • REUNION
  • 3917400000

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



Full Shielding Safe And Stability Male Female Connector Socket Connector

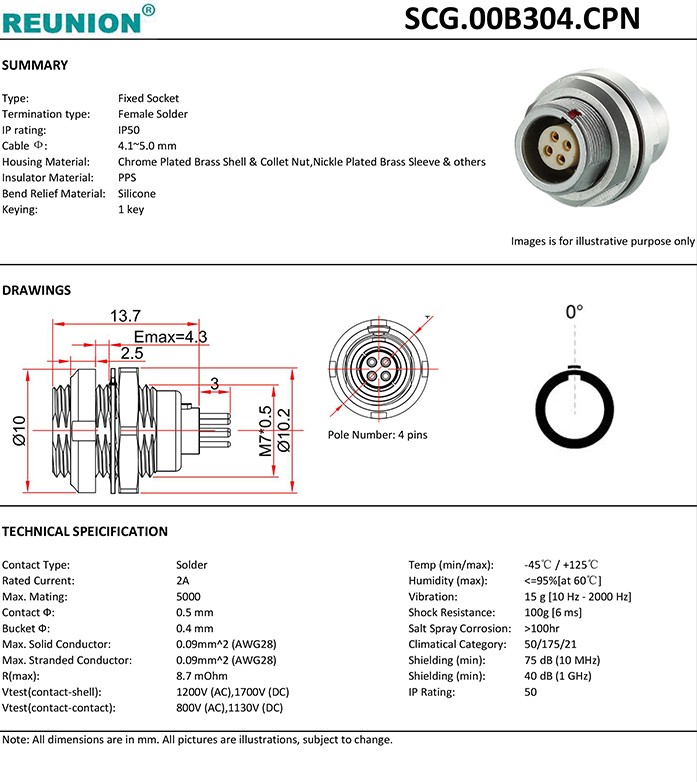

Specifications:


socket connector

Advantage:


push-pull connector


Poduct Application:


Metal connector


Our Company:

our company


Exhibition:

plug connector


Certificate:

male female


Hot sales:

category
