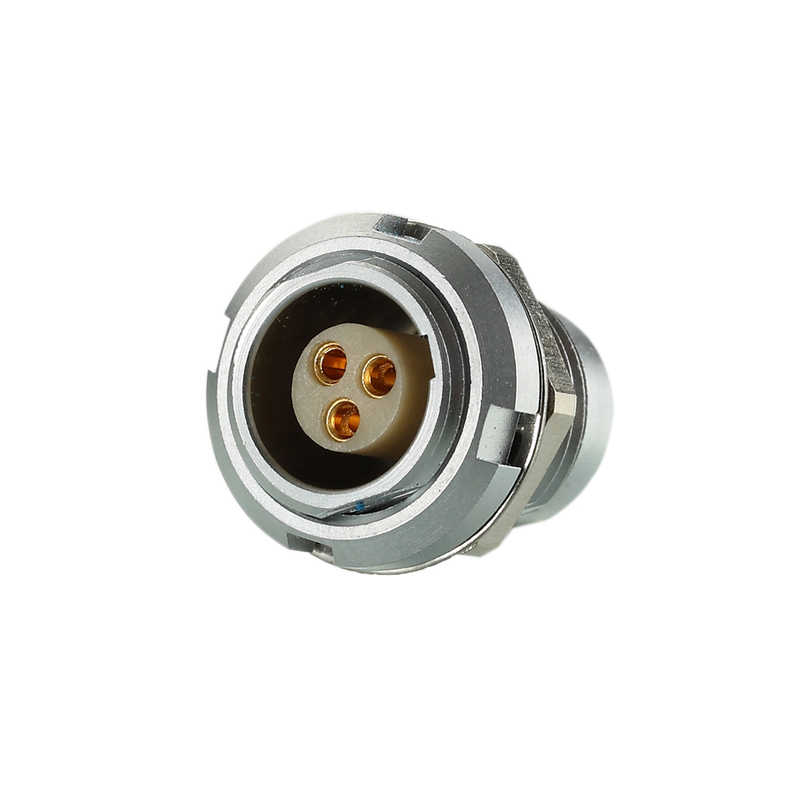

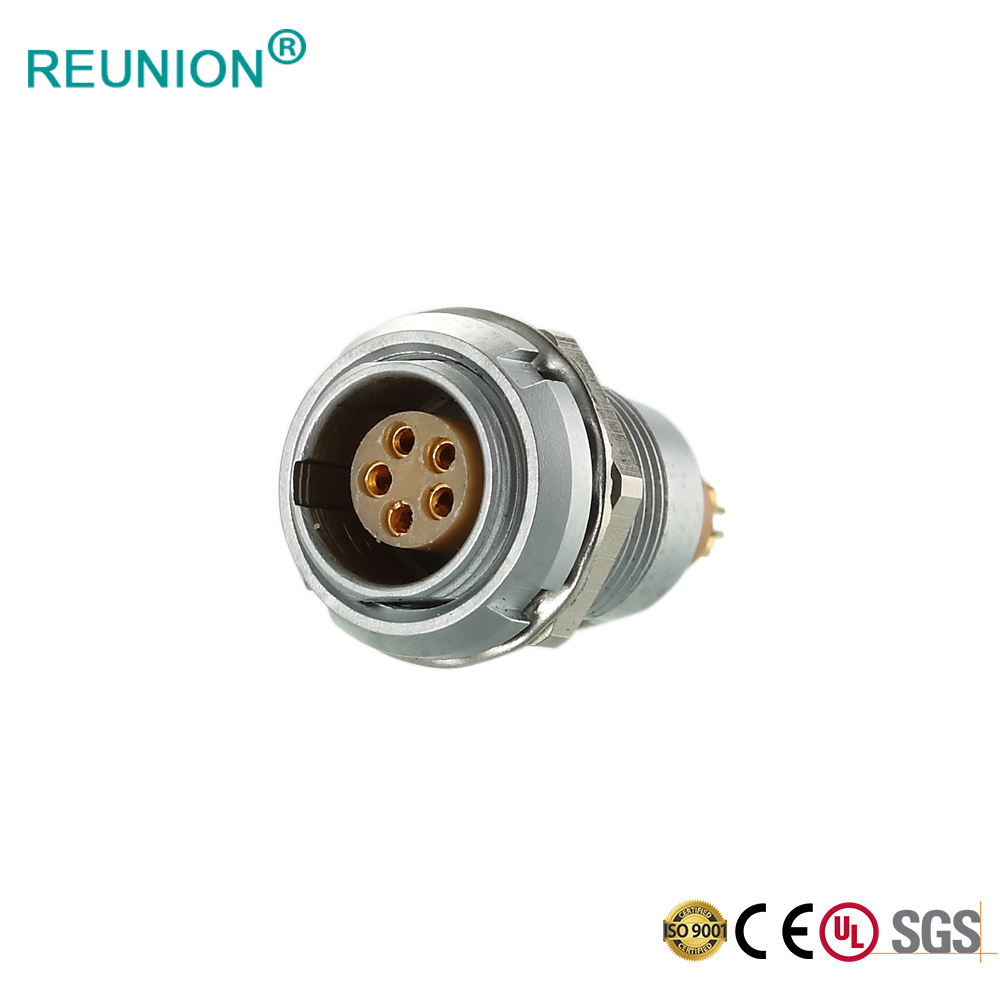

High Quality 00B 0B 1B 2B 3B series female receptacle circular connectors

1.Quick push pull self-latching system
2.Solder , crimp or print contacts
3.Straight or elbow 90。
4.Multiple keying options to avoide mismating
5.Full EMC shielding
6.Multi-pole 2 ~ 32 contacts
7.High-density installation to save space
8.Mating cycles: >5000 times
9.Humidity: at 60 °C, max. up to 95%
10.Temperature range: -45 ° ~ + 125 °
11.Vibration: 10-20,000HZ, 15g
12.Mechanical shock: 100g.6ms
13.Salt fog corrosion:>48h
14.Protection class: IP50
15.Product Certificate:UL
