IP67 Waterproof quick lock 3N/3Pole 30A power supply connector aviation plug

1.Push-pull self-locking system
2.Different keys to avoid mismating
3.Multi-pole: 3 pins
4.Quick and convenient turning locking system
5.Made of nylon fiber, fire rating V0, corrosion resistance
6.Good insulation under high temperature
7.Socket terminal adopts imported beryllium copper of which assure long life and good conductivity
8.Over 2,000 times mating
9.250V/30A current capacity
10.Protection class(mated): IP50 or IP67
11.Product Certificate: UL
Availability:
Quantity:
  • PCE.3N303.NE12LY.67
  • REUNION

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



IP67 Waterproof quick lock 3N/3Pole 30A power supply connector aviation plug



Product Specification:


POWER CONNECTORS


3N SERIES POWER CONNECTOR:



3N IP50-BLUE COLOR:


powercon connector



3N IP50-GREY COLOR:


power supply connector

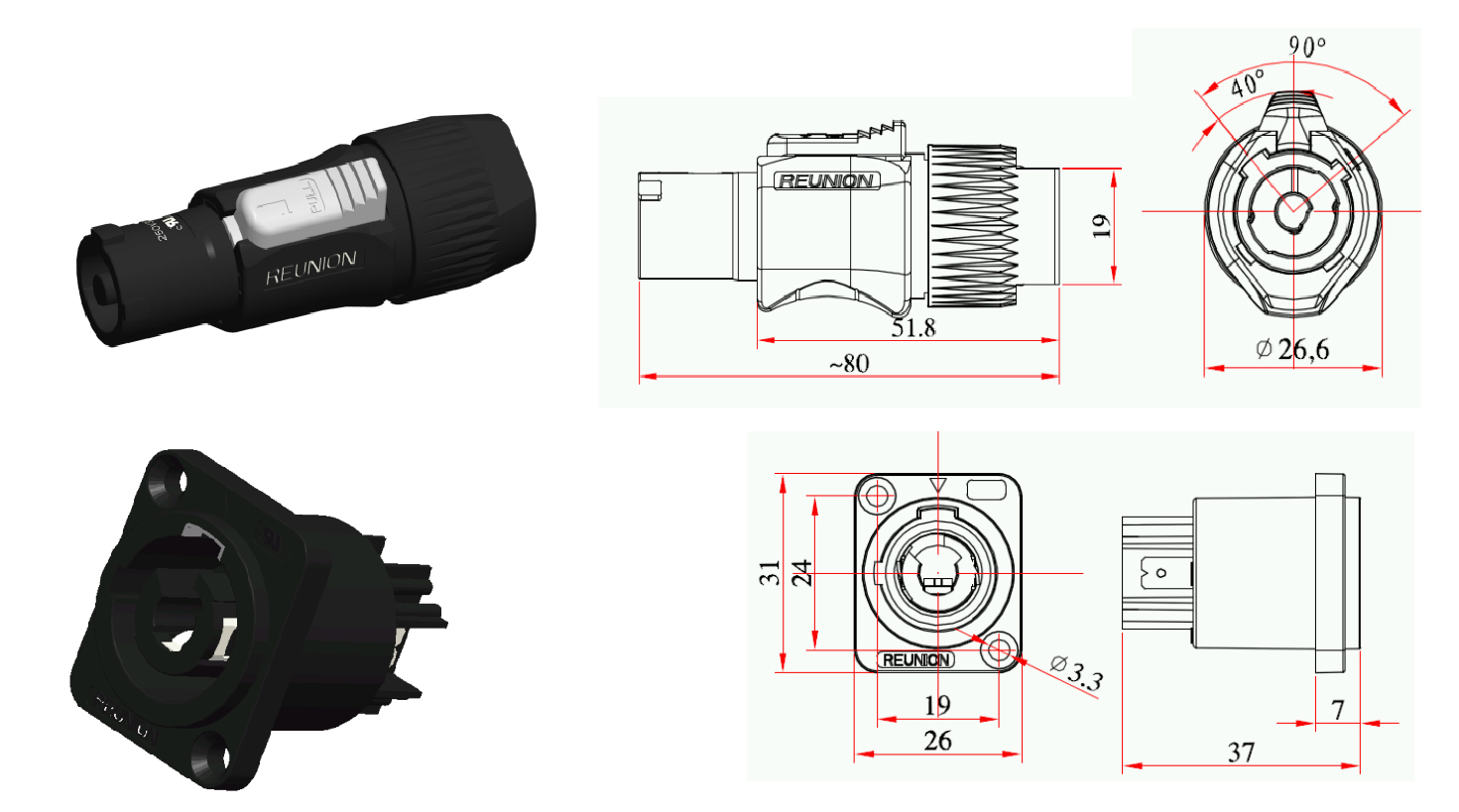

3N IP67-BLACK COLOR:


3pin power connector

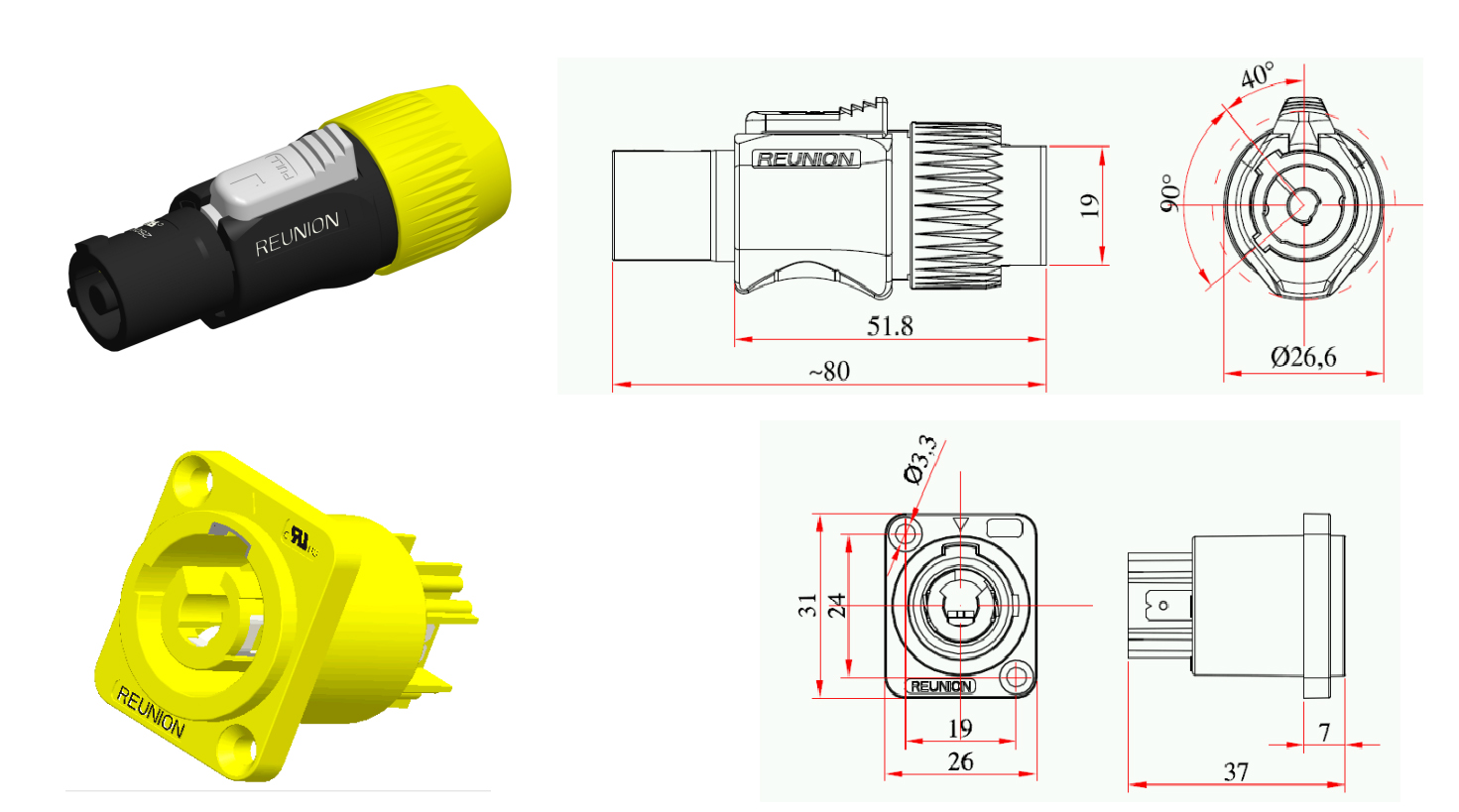

3N IP67-YELLOW COLOR:


power plug




Poduct Application:


30A connector
