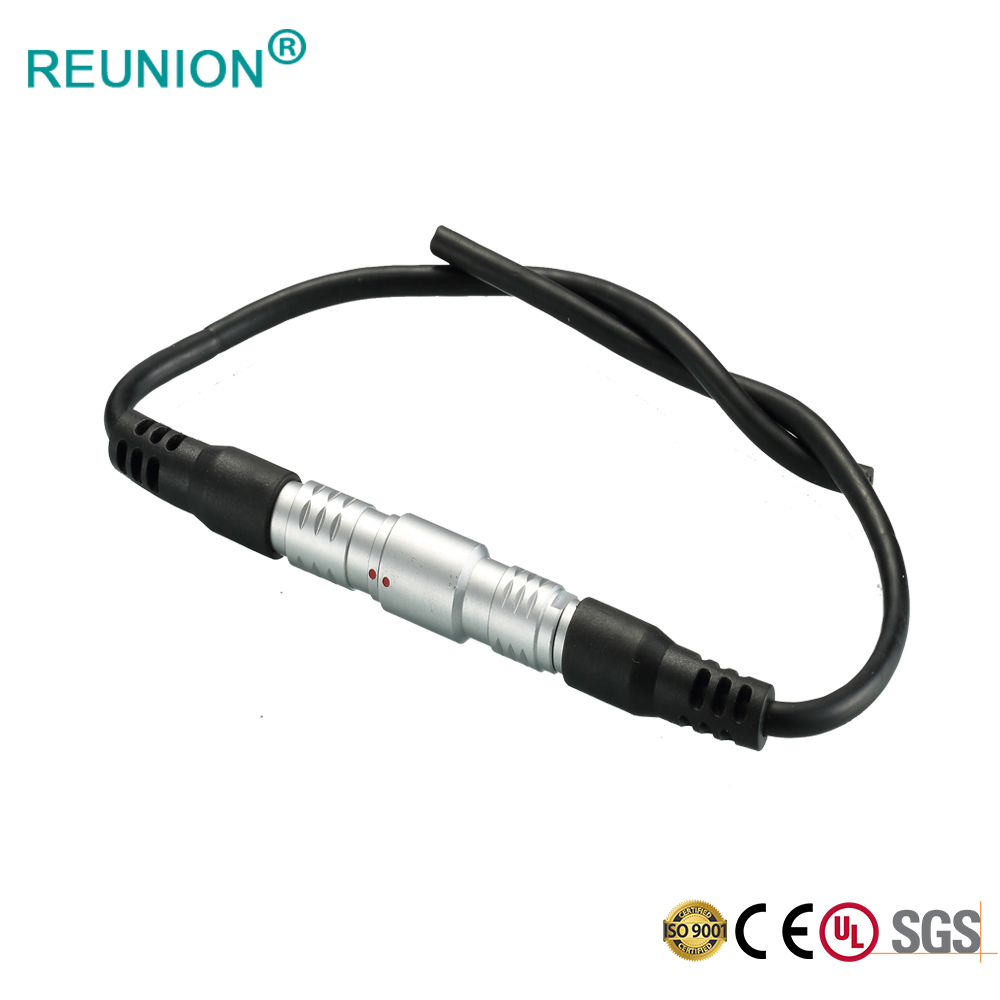

K Series Female Socket Push Pull Self-locking Electrical Receptacle

1.Safe push pull self-latching system
2.Robust shell suitable for extremely harsh environment
3.Solder , crimp or print contacts
4.Straight or elbow 90。
5.Multiple keying options to avoide mismating
6.Full EMC shielding
7.Multi-pole 2 ~ 32 contacts
8.High-density installation to save space
9.Mating cycles: >5000 times
10.Humidity: at 60 °C, max. up to 95%
11.Temperature range: -45 ° ~ + 125 °
12.Vibration: 10-20,000HZ, 15g
13.Mechanical shock: 100g.6ms
14.Salt fog Corrosion:>48h
15.Protection class(mated): IP66 ~ IP68
16.Product Certificate:UL
