REUNION B Series High quality cheap price Metal Medical Circular Connector

1.Quick push pull self-latching system
2.Solder , crimp or print contacts
3.Straight or elbow 90。
4.Multiple keying options to avoide mismating
5.Full EMC shielding
6.Multi-pole 2 ~ 32 contacts
7.High-density installation to save space
8.Mating cycles: >5000 times
9.Humidity: at 60 °C, max. up to 95%
10.Temperature range: -45 ° ~ + 125 °
11.Vibration: 10-20,000HZ, 15g
12.Mechanical shock: 100g.6ms
13.Salt fog corrosion:>48h
14.Protection class: IP50
15.Product Certificate:UL
Availability:
Quantity:
  • PGG.0B307.CPAC.52L
  • REUNION

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



REUNION B Series High quality cheap price Metal Medical Circular Connector


Push and pull self-locking system is known for simple and quick plug. It can effectively resist vibration and shock, and can prevent the disconnection caused by pulling the cable. It is absolutely safe and reliable to use, which facilitates the insertion and removal in a very limited space.

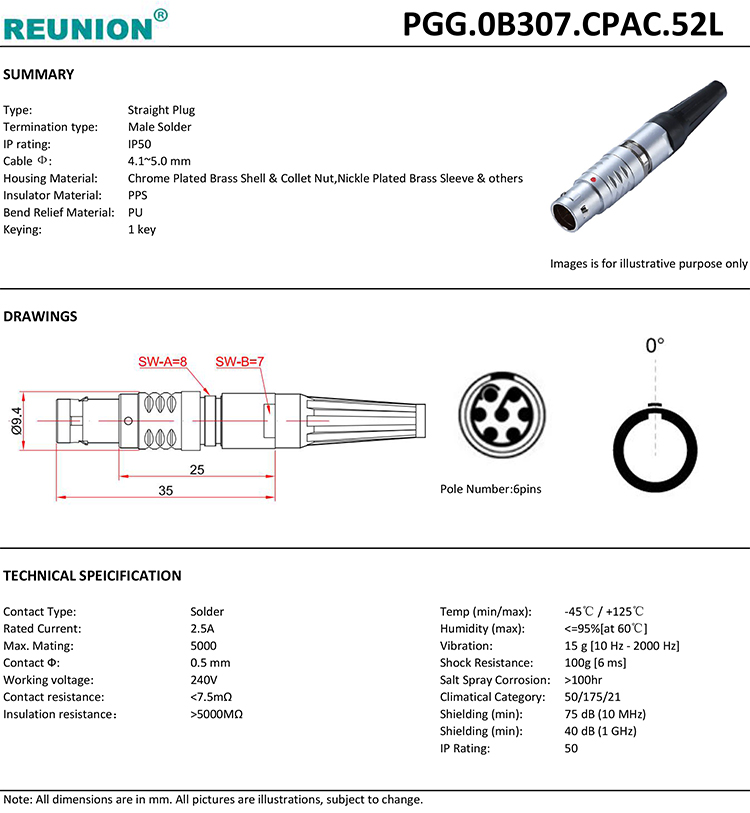

Product Specification:



Circular connector


0B SERIES PLUG:

B series connector

circular connector



0B SERIES SOCKET:

female connector

male female connector

medical connector

Advantage:


push-pull connector


Poduct Application:


metal circular connector


Our Company:


Reunion is a professional manufacturer of electronic connectors.
Our products are suitable for medical, military, industrial control, LED screen, navigate, test and measurement, oil and nuclear industry, tele-communications.
Since in 2011, we have successfully provided lots of products and earned good reputation from our customers.
Our main products is electrical connector. Meanwhile, we could provide all kinds of connects as low voltage connector, plastic connector, miniature connector, inserts series B K S F P M X N RJ45, high pressure connector, high voltage connector, cable assemblies, accessories, other/special.
