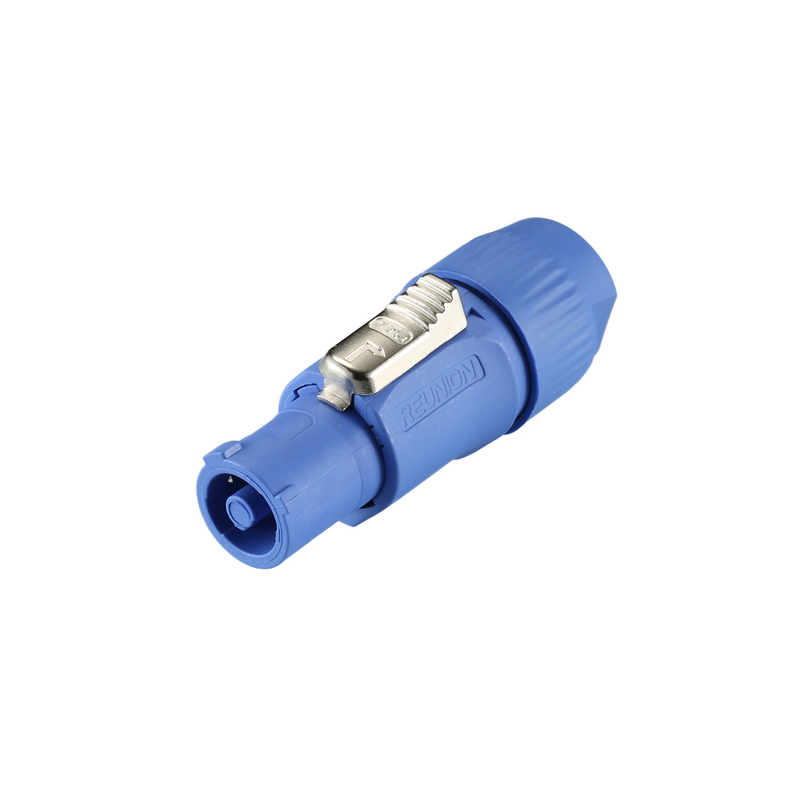

REUNION Factory OEM/ODM Electrical Power Connector Male Plug Female Socket

1.Push-pull self-locking system
2.Different keys to avoid mismating
3.Multi-pole: 3 pins
4.Quick and convenient turning locking system
5.Made of nylon fiber, fire rating V0, corrosion resistance
6.Good insulation under high temperature
7.Socket terminal adopts imported beryllium copper of which assure long life and good conductivity
8.Over 2,000 times mating
9.250V/30A current capacity
10.Protection class(mated): IP50 or IP67
11.Product Certificate:UL
Availability:
Quantity:
  • PCF.3N303.NE12BB.50
  • REUNION

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



REUNION Factory OEM/ODM Electrical Power Connector Male Plug Female Socket


Product Specification:


Name: 3N power Connector
Model NO: PCE.3N303.NE12LY.67
Color: Yellow/black/blue/grey
Material: Nylon
Coupling: Push-Pull
Cable diameter: 8~12.5mm
Termination: Solder
Pin number: 3 pins


Technical parameters

Contact diameter: 2.2mm
Working voltage: 250v
Working amper: 30A
Working temperature: -30 to 105
Mechanical life: >2000
Suitable cable diameter: 8-12.5
Protection class: IP67/IP50
Product Certificat: UL


Power connector


3N SERIES POWER CONNECTOR:



3N IP50-BLUE COLOR:


Powercon



3N IP50-GREY COLOR:


field mount connector



3N IP67-BLACK COLOR:


IP67 power connector



3N IP67-YELLOW COLOR:


IP67 connector




Poduct Application:


Power connectors


Our Company:


Reunion is a professional manufacturer of electronic connectors.
Our products are suitable for medical, military, industrial control, LED screen, navigate, test and measurement, oil and nuclear industry, tele-communications and New energy.
Since in 2011, we have successfully provided lots of products and earned good reputation from our customers.
Our main products is electrical connector and cable assembly. Meanwhile, we could provide all kinds of connects as low voltage connector, plastic connector, miniature connector, inserts series B K S F P M X N RJ45, high pressure connector, high voltage connector, cable assemblies, accessories, other/special.
