Reliable and High-performance PCB data connector electrical socket with low price

1.Quick push pull self-latching system
2.Solder , crimp or print contacts
3.Straight or elbow 90。
4.Multiple keying options to avoide mismating
5.Full EMC shielding
6.Multi-pole 2 ~ 32 contacts
7.High-density installation to save space
8.Mating cycles: >5000 times
9.Humidity: at 60 °C, max. up to 95%
10.Temperature range: -45 ° ~ + 125 °
11.Vibration: 10-20,000HZ, 15g
12.Mechanical shock: 100g.6ms
13.Salt fog corrosion:>48h
14.Protection class: IP50
15.Product Certificate: UL
Color:
Material:
Certificate:
Gender::
Type:
Availability:
Quantity:
  • SPG.1B303.CPV
  • REUNION
  • 3917400000

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



Reliable and High-performance PCB data connector electrical socket with low price


Product Specification:

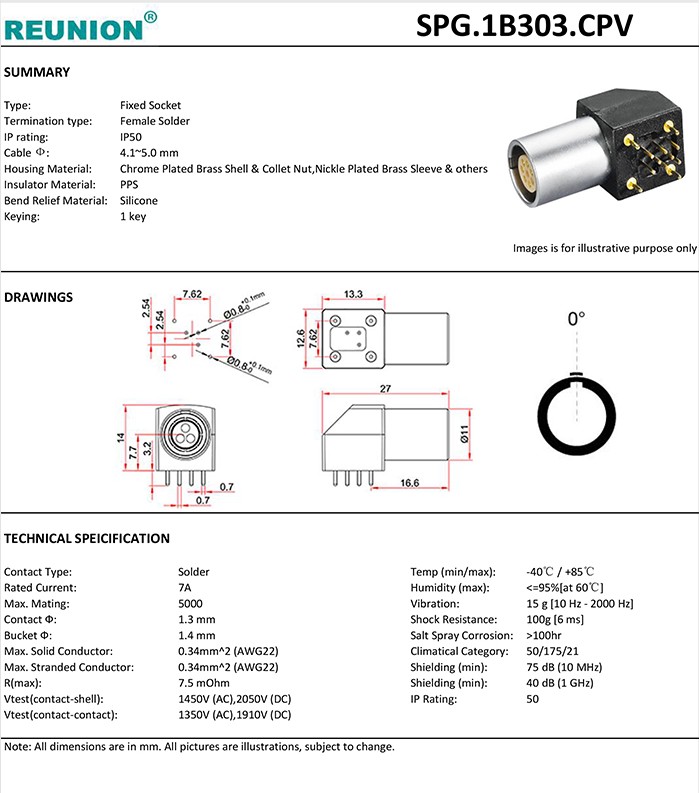

Female receptacle


1B SERIES PLUG:

male female connector

connector plug



1B SERIES SOCKET:

PCB socket

cable connector

metal connector


Advantage:


push-pull connector


Poduct Application:


metal push pull connector


Our Company:

circular connector


Exhibition:

circular connector


Certificate:

multipole connector
