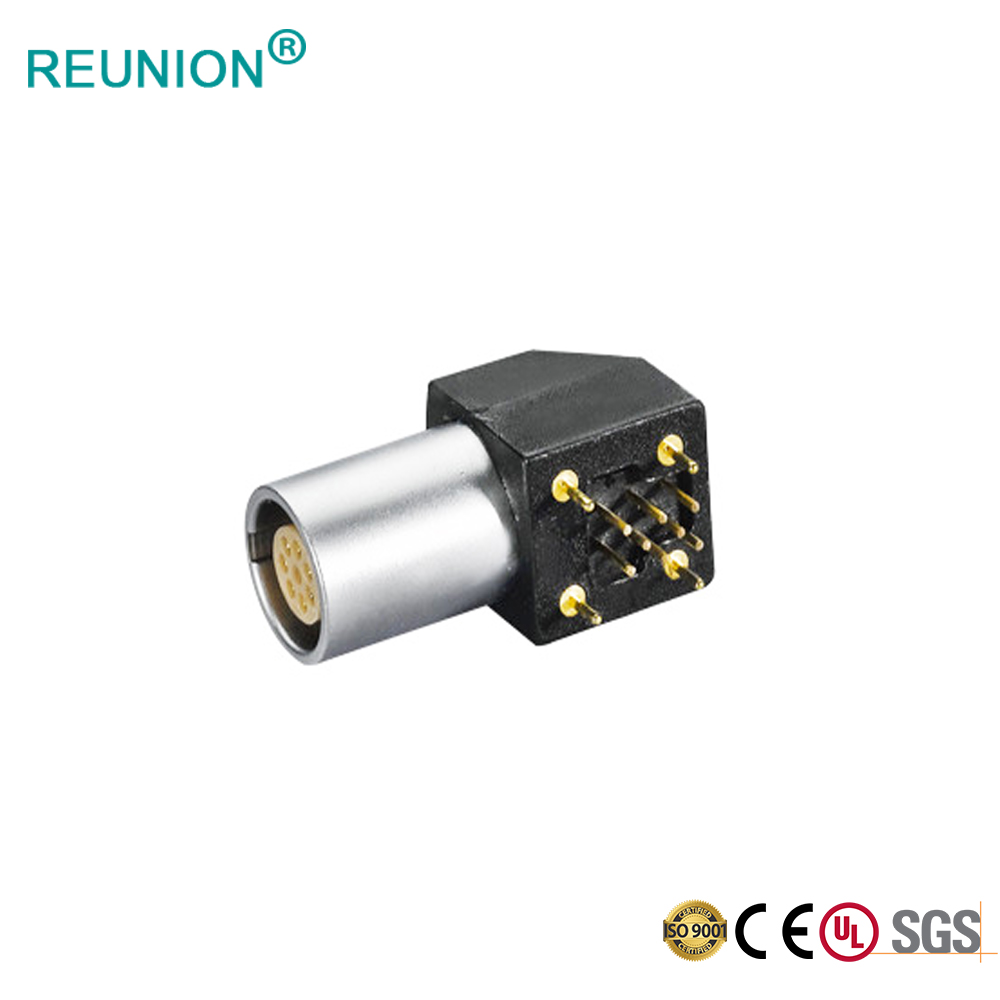

Shenzhen factory hot sell cheap price 4 poles PCB type female circular connector metal couplers

1.Quick push pull self-latching system
2.Solder , crimp or print contacts
3.Straight or elbow 90。
4.Multiple keying options to avoide mismating
5.Full EMC shielding
6.Multi-pole 2 ~ 32 contacts
7.High-density installation to save space
8.Mating cycles: >5000 times
9.Humidity: at 60 °C, max. up to 95%
10.Temperature range: -45 ° ~ + 125 °
11.Vibration: 10-20,000HZ, 15g
12.Mechanical shock: 100g.6ms
13.Salt fog corrosion:>48h
14.Protection class: IP50
15.Product Certificate:UL
Color:
Material:
Certificate:
Gender::
Type:
Availability:
Quantity:
  • SCG.1B304.CPN
  • REUNION
  • 3917400000

REUNION CONNECTORS-FOCUS ON CONNECTOR CUSTOMIZATION SOLUTIONS



Shenzhen factory hot sell cheap price 4 poles PCB type female circular connector metal couplers


Push pull connector is self-locking system for simple and quick plug. It can effectively resist vibration and shock, and can prevent the disconnection caused by pulling the cable. It is absolutely safe and reliable to use, which facilitates the insertion and removal in a very limited space.

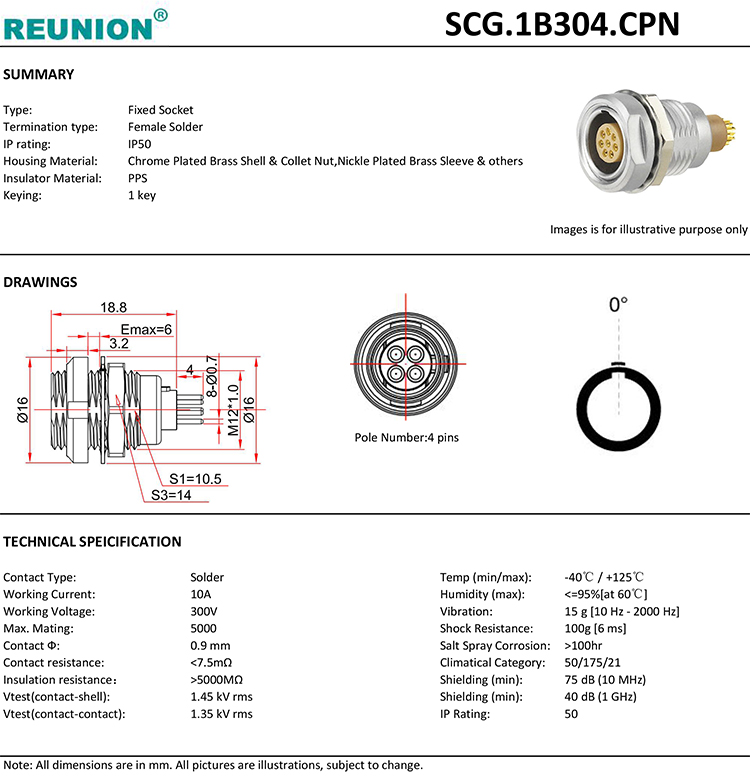

Product Specification:


PCB socket


1B SERIES PLUG:

electrical socket

straight plug



1B SERIES SOCKET:

female socket

female receptacle

connector female


Advantage:


push-pull connector


Poduct Application:


metal circular connector


Our Company:


Reunion is a professional manufacturer of push pull connectors.
Our products are suitable for medical, military, industrial control, LED screen, navigate, test and measurement, oil and nuclear industry, tele-communications and New energy.
Since in 2011, we have successfully provided lots of products and earned good reputation from our customers.
Our main products is electrical connector and cable assembly. Meanwhile, we could provide all kinds of connects as low voltage connector, plastic connector, miniature connector, inserts series B K S F P M X N RJ45, high pressure connector, high voltage connector, cable assemblies, accessories, other/special.
